Load-Bearing Insulation Applications for Industrial Tanks

By Insulation Solutions

Industrial tanks present a structural insulation challenge that has no direct equivalent in pipe insulation. When a tank is filled with process fluid, product, water, or any other stored material, the weight of the contents as well as the tank bear down onto whatever is beneath it — including, in many installations, the insulation system between the tank bottom and its foundation or support structure.

Insulation that cannot carry that load without compressing, deforming, or losing its thermal properties under sustained weight is insulation that is failing at the most fundamental level of its specific application. Because it is hidden, thermal failure of a tank base is difficult to detect, nearly impossible to remedy without taking the tank out of service, and cumulative, causing insulation value to degrade progressively over the operating life of the asset.

Dragon Jacket Insulation (DJI) manufactures pipe and tank insulation systems that include load-bearing components specifically engineered for the compressive demands of industrial tank bases. Understanding what load-bearing insulation requires, and why conventional materials struggle to deliver it, is the starting point for specifying tank insulation that will actually perform across a twenty-year-plus service life.

What Load-Bearing Insulation Actually Means

Load-bearing refers to insulation that is installed beneath a tank bottom and must support the full weight of the tank and its contents without compressing to the point that its thermal performance, moisture resistance, or dimensional stability are compromised to the point that it fails to serve its intended purpose. This is a fundamentally different performance requirement from insulation installed on the sides or roof of a tank, where the primary loads are environmental rather than structural, and where inspection, repair, or replacement issues are relatively easy to remedy.

The magnitude of the compressive load on tank base insulation depends on the tank diameter, weight, fill height, density of the stored product, and how the load is distributed across the base insulation area. For large storage tanks filled with dense process fluids or bulk materials, the compressive load on base insulation can be substantial — in many chemical processing or food and beverage applications, that can exceed 7 tons. This is clearly above the compressive strength threshold of fibrous insulation materials (which, for that reason, generally cannot be used in tank base applications), but also at the upper range of what many glass foam insulation products are rated for under sustained load conditions.

Interestingly, the relevant performance criterion in evaluating tank bases is not instantaneous compressive strength (the load at which a material crushes under a sudden force, like a hammer blow), but compressive creep resistance — that is, the ability of the base material to maintain its thickness and properties under a sustained, long-term compressive load without gradually deforming over months and years of service. A material can pass a short-duration compressive strength test and still fail in a tank base application because it creeps under sustained load in ways that the short-duration test does not capture.

Why Conventional Insulation Materials Fail Under Tank Loads

As noted above, fibrous insulation materials such as fiberglass, mineral wool, and similar products, have essentially no viable application for tank bases. Flexible foam insulation materials such as polyethylene foam, flexible polyurethane foam have somewhat better compressive properties than fibrous materials but are still poorly suited to sustained tank base loads for large tanks; they compress under long-term load through creep deformation that is slow enough to be invisible in the short term but significant over a multi-year service life. The compression is permanent; flexible foams do not recover their original thickness after sustained compressive loading, which means the insulation performance degrades continuously from the point of installation.

Accordingly, plants often use rigid board insulation such as cellular glass, extruded polystyrene, or rigid polyisocyanurate, which perform better, and are used in tank base applications as well as some conventional insulation specifications. However, they also have their drawbacks. Rigid board products installed at tank bases are typically not encapsulated against moisture intrusion from below, which means ground moisture and foundation condensation can saturate the insulation core over time even when the initial compressive performance is adequate.

Cellular glass is, for the most part, the most commonly used option for tank base insulation. Cellular glass is made up of millions of sealed glass cells; it is moisture-resistant and relatively lightweight, and can operate over a very broad range of temperatures. However, cellular glass also has some drawbacks: it is brittle, difficult to install at transitions, and expensive.

A Revolutionary Solution to the Structural Requirements of Tank Base Insulation

Dragon Jacket Insulation has taken an entirely different approach to industrial insulation. It uses today’s computer-aided design and manufacturing capabilities to redress the most problematic aspects of traditional insulation when it comes to performance in the field: moisture intrusion, thermal performance degradation over time, disposability, difficulty in adequately covering complicated geometries, and long-term structural stability. The basic design is composed of a rigid (but not brittle) foam insulation core fully encapsulated in a polyurea shell custom fitted to each specific component. With DJI’s solution, accepting the inferior performance of traditional insulation approaches is completely unnecessary not only for traditional pipe and fitting architecture, but also for tank bases.

DJI’s tank base insulation combines its closed-cell polyurethane foam core with a structural polyurea encapsulation that performs a different role at the base than it does on the sides or roof of a tank. On pipe and panel applications, the polyurea shell is primarily a moisture and impact barrier. At the tank base, the structural properties of the polyurea encapsulation contribute directly to compressive load performance by distributing load across the surface of the panel rather than allowing it to concentrate at contact points between the tank bottom and the insulation core.

This load distribution function is important because tank bottoms are not perfectly flat; they have minor irregularities, weld seams, and deflection patterns under load that create localized contact pressure variations across the insulation surface; some may be curved to provide structural integrity to the tank. In a non-encapsulated insulation system, localized high-pressure contact points compress the insulation disproportionately, creating thin spots at contact locations that then concentrate both thermal loss and moisture exposure at those points. The structural polyurea shell bridges these contact variations and distributes the load more evenly across the insulation panel, which reduces localized compression and maintains more consistent insulation thickness across the full base area.

The closed-cell foam core itself contributes to load-bearing performance through its inherent compressive resistance. Closed-cell polyurethane foam has significantly higher compressive strength than open-cell foam and most fibrous insulation materials, and its closed-cell structure means that compressive loading does not create pathways for moisture migration through the foam matrix the way it does in open-cell materials under load.

Moisture Migration From Below: A Problem Encapsulation Solves

Tank base insulation operates in the most moisture-hostile location on the tank. Ground moisture migrates upward through foundations and bearing surfaces by capillary action and vapor pressure differential. When condensation forms on cold tank bottoms, it runs down the shell to accumulate at the base. In outdoor installations, rainwater can infiltrate the perimeter of the tank base insulation and work inward beneath the tank bottom. Any insulation material at the tank base that is not fully protected against moisture intrusion from below will absorb moisture over time in ways that degrade its thermal performance and create corrosion conditions on the tank bottom.

The consequences of tank bottom corrosion are severe and costly. Tank bottom failures from corrosion are among the most expensive and operationally disruptive failure modes in bulk storage operations. Remediation requires emptying the tank, removing and disposing of the failed insulation, cleaning and treating the corroded steel, and replacing both the tank bottom sections and the insulation system before the tank can be returned to service. The cost of that remediation and the production loss during the extended outage it requires is vastly greater than any cost difference between moisture-vulnerable conventional insulation and a fully encapsulated system at the tank base.

A fully encapsulated insulation panel that excludes moisture from all directions, including from below, protects the tank bottom from the corrosion mechanism that moisture-permeable base insulation actively enables. The manufacturing process by which the polyurea encapsulation adheres to the core makes the entire base insulation a monolithic unit; it does not rely on a separate vapor barrier membrane, sealant, or coating applied over the insulation to achieve moisture exclusion. Instead, it is a physical property of the manufacturing process, consistent across the full surface of every panel including edges, corners, and transitions between panels.

Tank Base Design Considerations for Engineers

For engineers specifying load-bearing tank base insulation, several design considerations are directly relevant to component selection and installation detail:

  • Panel compressive strength rating should be confirmed against the calculated bearing pressure for the specific tank and product combination being specified. The bearing pressure at the tank base is not uniform; for large diameter tanks, it is higher at the shell line than at the center, and it varies with fill level during operation. The specification should address the maximum bearing pressure at the critical location, typically the shell perimeter, rather than the average pressure across the full base area.
  • Panel thickness affects both thermal performance and compressive load capacity. Thicker panels provide better thermal resistance but present a larger surface area for edge moisture exposure at panel joints. The specification should address panel joint treatment to maintain moisture barrier continuity across the full base area, particularly at the perimeter where moisture infiltration risk is highest.
  • Settlement of the supporting foundation or bearing surface after tank installation can create localized unsupported spans in the base insulation if the foundation deflects unevenly. The insulation specification should confirm that panel structural properties are adequate to bridge minor foundation settlement without fracturing or losing coverage at unsupported spans. Prefabricated rigid panels with structural encapsulation with a nominal amount of “give” handle minor settlement bridging more reliably than brittle board products or non-encapsulated foam panels.
  • The interface between base insulation and shell insulation where the horizontal base panels meet the vertical shell panels at the tank perimeter is a critical detail for both moisture management and thermal continuity. This transition should be specified as a designed interface rather than a field-improvised connection, with defined overlap, sealing, and fastening requirements that maintain the moisture barrier and thermal continuity of the full tank insulation system at its most vulnerable location.

Talk to a Dragon Jacket Engineer about Industrial Tank Base Insulation Solutions

If your project involves industrial tank insulation with load-bearing base requirements,  whether for new tank construction, tank refurbishment, or replacement of underperforming base insulation on an existing asset,  Dragon Jacket Insulation can provide technical guidance on component selection, bearing pressure calculations, and specification development for your specific tank configuration and operating conditions. Contact Dragon Jacket Insulation to speak to an engineer about a product question, schedule a demonstration, or request a quote.



How to Specify Prefabricated Insulation in Engineering Plans

By Pipe Insulation

Getting insulation right on an industrial project means addressing it at the specification stage, not right before actual installation. Insulation that is underspecified or specified generically without evaluating how different insulation materials can affect actual operating conditions, piping system types, and maintenance requirements of the facility is likely to produce field results that diverge from design intent in ways that are expensive to correct later.

For EPC engineers writing mechanical insulation specifications for industrial projects, considering a prefabricated rigid insulation system like Dragon Jacket Insulation involves a different set of decisions than conventional fibrous insulation requires. In particular, it puts a lot of the insulation work up front: the geometry must be resolved before installation rather than during it. That means performance characteristics are considered and defined by industrial needs, and the finished manufactured components are made to meet specifications up front, rather than dependent on potentially inconsistent field workmanship.

Dragon Jacket Insulation (DJI) manufactures insulation components for industrial insulation systems consisting of rigid foam components completely encapsulated in a polyurea shell. For this type of insulation, the interface between insulation system design and piping system design is closer than it is with conventional approaches. Dragon Jacket works with EPC engineering teams to support the specification process for prefabricated pipe and tank insulation systems across a range of industrial project types. The guidance below reflects the practical considerations that matter most when drafting those specifications.

Start With Pipe Architecture, Not Just Pipe Size

The primary input for specifying prefabricated insulation is an accurate and complete picture of the piping architecture the insulation must cover. This goes beyond pipe diameters and configurations; a complete piping inventory includes the pipe material and joining system — for example, welded and flanged, grooved mechanical, bell-and-spigot, HDPE fusion, or others.  Because prefabricated insulation components are engineered to specific connection geometries, the correct component family for a grooved Victaulic system is different from the correct family for a welded carbon steel system.

The fitting inventory is equally important. Straight runs are straightforward; the specification complexity lies in the population of elbows, tees, reducers, flanges, valves, strainers, and other inline components that require individual component matches. A complete fitting count by type, size, and configuration — short-radius versus long-radius elbows, for example — is the foundation of an accurate prefabricated insulation specification and a reliable material takeoff. Engineers who develop this inventory early in the design process avoid the field substitutions and delays that result from discovering unspecified fitting configurations during installation.

Pipe support and saddle locations deserve specific attention in the specification. These are not generic straight-run locations — they require dedicated structural components that maintain insulation thickness and continuity under compressive load, and they need to be identified and specified as distinct components rather than handled as field modifications to standard straight-run sections.

Define Operating Conditions by Circuit, Not by Project

A single industrial project may include multiple discrete piping circuits operating at substantially different temperatures, pressures, and ambient exposure conditions. Specifying a single insulation thickness or a single R-value target across an entire project without differentiating by circuit can produce an insulation system that is over-specified for some lines and under-specified for others.

For each insulated circuit, the specification should define the desired normal operating temperature range and potential extremes, as well as the ambient temperature range the circuit will be exposed to and whether the line normally operates above or below ambient temperature. Lines operating below ambient require particular attention to vapor management in the specification. While Dragon Jacket’s impermeable encapsulation addresses the vapor barrier requirement without a separate specification on this point, it should be confirmed explicitly for cold applications.

Process fluid type and pressure are relevant where chemical compatibility of the insulation system is a concern, for example, on lines carrying volatile or caustic chemicals, hydrocarbons, or process fluids that could contact the insulation in the event of a leak or spill. Dragon Jacket’s polyurea encapsulation carries broad chemical resistance, but engineers specifying for highly aggressive chemical environments should confirm compatibility for specific substances.

Other factors to address for circuit level specifications include noting whether the installation is outdoor versus indoor, UV exposure, wind loading requirements, and the presence of chemical washdowns or high-pressure cleaning in the operating environment. These factors affect component selection and installation details in ways that a thermal specification alone does not capture.

Specify Insulation Thickness Based on Thermal Objectives

Insulation thickness for a prefabricated closed-cell foam system is specified based on the thermal objective for each circuit and its operating conditions, whether that means heat conservation, freeze protection, personnel protection, or process temperature maintenance. Dragon Jacket’s closed-cell foam core delivers a static R-value of 6.25 per inch, or 12.53 for a standard two-inch thickness. Standard available thicknesses should be confirmed with the manufacturer for specific pipe diameters and component types, as available configurations vary across the product range.

For freeze protection applications, thickness specification should account for the design minimum ambient temperature, the minimum flow condition (including no-flow or stagnant conditions), and whether heat trace is incorporated into the system design. On heat trace applications, the insulation specification and the heat trace specification are interdependent: the heat trace output is sized based on the thermal characteristics of the insulated assembly, and changes to insulation thickness after heat trace sizing is complete may require heat trace resizing. The two specifications should be developed in coordination rather than sequentially.

For personnel protection applications, where the objective is to maintain outer insulation surface temperature below a specified threshold for burn hazard management, the required insulation thickness depends on the pipe operating temperature, the insulation’s thermal conductivity, and the ambient conditions. Dragon Jacket’s engineering team can provide thermal calculation support for personnel protection applications where thickness selection requires confirmation against a specific surface temperature target.

Address Component Interfaces and System Continuity

One of the most important and most frequently underspecified aspects of a prefabricated insulation system is the interface between adjacent components, for example, how straight sections connect to elbows, how elbows connect to tees, and how the system manages transitions at flanges, valves, expansion joints, and equipment connections. These interfaces are where moisture entry occurs if interfaces are not properly designed and installed, and where thermal continuity gets broken if the specification does not address them adequately.

The specification should require that component interfaces maintain the same moisture barrier continuity as the components themselves: no exposed foam at joints, no gaps at transitions, and no reliance on field-applied tape or mastic to seal connections that the component design should address. For Dragon Jacket systems, component connections are designed as part of the engineered system rather than left to field judgment, but the specification should expressly require this.

Expansion joint locations require even more specific specification language. The insulation system should terminate cleanly at expansion joints, with defined end conditions that do not transfer movement-induced stress into adjacent insulation components.

Equipment and instrumentation connections, where insulated pipe transitions to pumps, heat exchangers, control valves, or instrumentation, should also be identified in the specification as locations requiring specific insulation termination and access details. Insulation that simply terminates abruptly at equipment flanges without a designed end condition creates moisture entry points and thermal bridges at those transitions.

Include Installation and Labeling Requirements

Installation requirements should accurately reflect the characteristics of the system being specified. For Dragon Jacket systems, relevant installation specification items include the fastening method (steel banding or zip ties depending on application), torque or tension requirements for fasteners, and the treatment of insulation at pipe supports, guides, and anchors.

Component identification and labeling requirements belong in the specification if the project involves multiple pipe sizes or multiple insulation thicknesses. Dragon Jacket components are palletized and coded for placement to match the pipe architecture component by component, making insulation identifiable, trackable, and verifiable during installation.

Quality control requirements defined in the specification should include inspection hold points, documentation of installation completion by system or zone, and photographic records of insulation at specified fitting locations. For projects where insulation quality has downstream implications for commissioning, inspection program design, or warranty claims, a defined inspection protocol in the specification provides the basis for verifying that installation meets design requirements.

Coordinate With the Mechanical and Structural Disciplines

Insulation specification on industrial projects does not exist in isolation from the broader mechanical and structural design of a piping system. Coordination with other requirements related to specific concerns regarding pipe supports, structural clearances, heat trace routes, valve configurations, and other pipe fittings are particularly important for prefabricated systems because component geometry is fixed at the manufacturing stage rather than adjustable in the field. Identifying and resolving these conflicts at the design coordination stage, before components are manufactured and shipped, is considerably less expensive than trying to resolve them in the field.

Contact Dragon Jacket for Specification Support

Specifying prefabricated, rigid insulation components custom-designed to match pipe architecture requires a different approach than traditional industrial insulation, but the benefits over the operational life of a facility are significant. Because it requires more planning up front at the design stage, Dragon Jacket Insulation works with EPCs to provide engineering support for specification development, including material takeoffs, thermal calculation assistance, and component configuration guidance for specific piping architectures.

If your project involves prefabricated insulation specification for a new industrial facility, a facility expansion, or a retrofit of existing conventional insulation, the Dragon Jacket technical team can help you develop a specification that accurately reflects the product and the project requirements. To learn more, contact Dragon Jacket Insulation to speak with one of our engineers, obtain a quote, or review an existing installation.



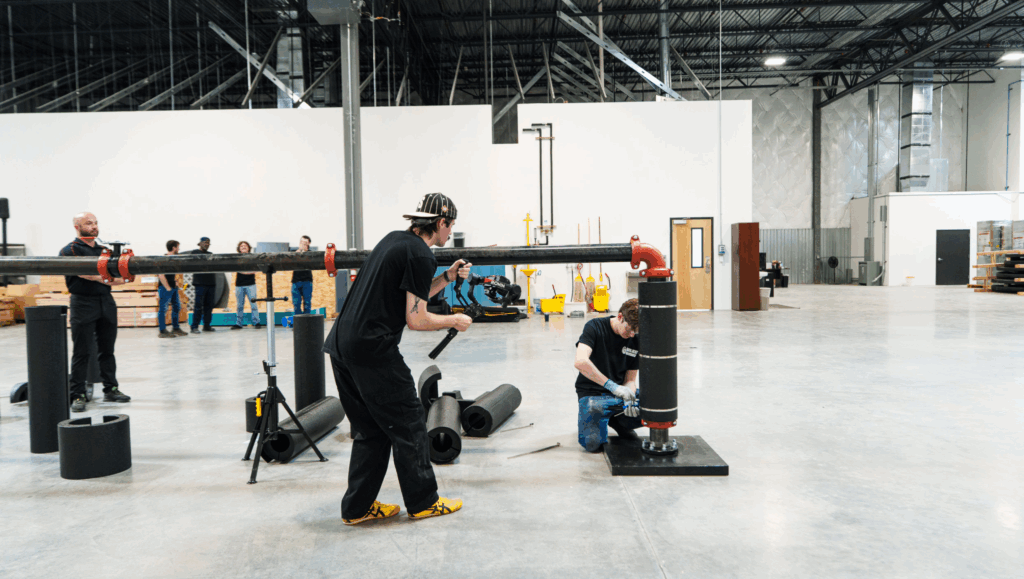

Factory Prefabrication Versus On-Site Insulation Installation

By Pipe Insulation

Insulation for piping systems installed in an industrial facility can be built two ways. Traditionally, industrial insulation has been fabricated and fitted in the field. It is a time-consuming task that must be installed by trained insulation subcontractors who work directly on the pipe system. Today, however, industrial insulation can arrive at the job site already manufactured to fit the specific pipe architecture of the facility, and installed as the system is built by untrained construction workers.

This distinction between on-site fabrication and factory prefabrication has implications that go far beyond methodology. It affects installation quality, project schedule, labor cost, material waste, long-term performance, and the economics of maintenance of the operation over the life of the facility.

This distinction has generally received much less attention than it deserves at the design specification stage, largely because on-site fabrication has been the default for so long that its limitations are often accepted as inherent in these projects. However, a prefabricated system from Dragon Jacket Insulation changes that dynamic. An EPC firm designing an industrial facility that specifies the traditional approach is making a conscious choice to accept the shortcomings of traditional insulation.

Dragon Jacket Insulation’s prefabricated insulation is manufactured based on either written specifications or modeling software that converts photographic images to 3D specs. This makes it possible to design custom-fit insulation for a piping system prior to construction or on an as-built system. Each prefabricated pipe, fitting, and tank insulation component is engineered and produced in a controlled factory environment before it arrives on site, and the difference between that approach and conventional field fabrication shows up at every stage of the installation and operational lifecycle.

How On-Site Fabrication Actually Works

To understand what factory prefabrication changes, it helps to be specific about what on-site insulation fabrication involves. When a conventional fibrous insulation system is installed on an industrial piping project, the process begins with raw insulation material — rolls or sections of fiberglass, mineral wool, or a similar pliable material working directly on a piping system. Installers measure the pipe, cut the insulation to length and diameter, shape it around fittings and transitions, secure it with bands or wire, and apply jacketing over the top to protect the insulation from environmental exposure. The entire system is then secured and sealed using tapes and mastics.

On straight pipe runs, this process is relatively efficient. However, on any type of pipe fitting — elbows, tees, reducers, flanges, valves — the process becomes a more complicated field fabrication exercise. The installer cuts and miters insulation sections to approximate the geometry of each fitting, builds up coverage with multiple pieces where necessary, and attempts to close all transitions and edges within the jacketing system. Every edge and seam must then be sealed. The quality of that work depends heavily on the skill and care of the individual installer, the time available to do the work properly, and the difficulty of the specific geometry being covered.

The result across a large pipe population is insulation coverage that is usually consistent on straight runs but which can be highly variable at fittings, which are the locations most vulnerable to moisture entry, thermal bridging, and corrosion under insulation. In other words, the weakest points in a field-fabricated insulation system are not randomly distributed; they are concentrated at exactly the locations where good insulation performance matters most.

What Factory Prefabrication Changes at the Component Level

Factory prefabrication relocates the fabrication process from the job site to a controlled manufacturing environment. Rather than asking an installer to shape insulation to fit a pipe elbow in the field, the manufacturer engineers a component that matches the geometry of that elbow with accurate dimensions and consistent insulation thickness before it leaves the factory.

In a factory environment, dimensional accuracy is controlled by tooling and process rather than by individual installer judgment. Wall thickness (and therefore insulation value) is consistent because it is a function of the mold or manufacturing process, not of how carefully an installer cuts and fits the material. The transition between components — straight run to elbow, elbow to tee, tee to reducer — is engineered as a designed interface rather than improvised in the field with whatever material and technique the installer has at hand.

Dragon Jacket components use closed-cell foam insulation fully encapsulated in a polyurea shell. Factory production also enables the seamless encapsulation that field-applied systems cannot achieve — the polyurea coating that forms Dragon Jacket’s outer shell is applied to the foam core as part of the manufacturing process, forming a continuous, impermeable barrier across the entire surface of the component. That continuity, with no seams, no laps, and no field-applied joints, is only possible with a controlled prefabricated system; it cannot be replicated or even matched in the field with jacketing systems, mastic coatings, or tape-sealed lap joints.

Installation Speed and Its Effect on Project Economics

The most immediately visible difference between prefabricated and field-fabricated insulation on a construction project is installation speed. Components that arrive on site pre-engineered to fit require placement and securing rather than measurement, cutting, fitting, and jacketing. The skill threshold for installation drops from specialized insulation tradecraft to general mechanical labor, and the time required per fitting drops substantially compared to field fabrication of the same component.

Because prefabricated components can be manufactured from detailed specs, insulation components can be on-site before the piping system is complete, coded to match every fitting with the right insulation component and installed as the system is built. On a large industrial project such as a new chemical plant, a data center mechanical installation, a water treatment facility expansion, where the insulation scope can involve hundreds or even thousands of fittings in addition to extensive straight pipe runs, the cumulative difference in installation time between a field-fabricated and a prefabricated system at that scale is significant enough to affect project schedules and mechanical completion milestones. Systems cannot be commissioned until insulation is complete, and delays in insulation completion push commissioning dates with consequences that extend well beyond the insulation budget.

For EPC contractors managing project schedules and labor budgets simultaneously, the installation speed of prefabricated systems is a project management advantage as well as a cost advantage. Predictable installation rates, reduced dependence on specialized subcontractor availability, and simplified quality control all contribute to a more manageable insulation scope on complex projects.

Quality Control: Factory Process Versus Field Variability

Quality control in field-fabricated insulation systems is fundamentally reactive. Inspectors review completed work, identify deficiencies such as thin spots, open seams, inadequate coverage at fittings, and then direct rework. The quality of the installed system is a function of the installer’s skill, supervisory thoroughness, and the time available to address deficiencies before the project moves to the next stage. On projects with schedule pressure, insulation quality control can often be compressed.

The same is not true for factory prefabrication. Quality control in factory prefabrication is embedded in the manufacturing process rather than applied after the fact. Dimensional accuracy, foam density, encapsulation continuity, and component geometry are controlled at the point of production and verified before components ship. Defective components are identified and addressed in the factory, not discovered on the job site during inspection or — worse — after installation when remediation requires removing and replacing installed work.

For engineers and project managers who have had to deal with insulation quality deficiencies on field-fabricated projects, with their attendant costs and delays due to rework, schedule disruption, and the long-term performance consequences that follow, the shift of quality control from the field to the factory has meaningful impact in how insulation system quality is actually achieved and maintained.

The Maintenance Lifecycle: Prefabrication’s Compounding Advantage

The advantages of factory prefabrication do not end at mechanical completion on install. They compound over the operational life of the facility in ways that affect maintenance costs and operational continuity year after year.

Field-fabricated insulation that is removed for pipe inspection or valve maintenance is rarely reusable. It is damaged in the removal process, inconsistently applied when replaced, and sometimes even omitted entirely at locations where reinstallation seems more trouble than it is worth. The result is a maintenance cost pattern that includes recurring insulation replacement at every access event, progressive degradation of coverage quality at high-access locations, and the accumulation of uninsulated or poorly insulated pipe segments that facilities have to manage imperfectly.

Because the prefabricated components from Dragon Jacket are designed for removal and reinstallation, they break this pattern. The geometry of the component is fixed at the factory; reinstallation is simply a replacement operation, not a fabrication operation. Insulation removed for maintenance access can be reinstalled accurately, quickly, and without loss of performance quality. The process is simple and can be done by the inspection and maintenance personnel: simply clip the metal band fasteners and remove the insulation, carry out the task, then replace the insulation and secure it with a new metal band. The insulation purchased at project completion is the same insulation in service 10, 15, or 20 years later, delivering the same thermal performance and moisture protection as it did on day one.

For facility operators more focused on long-term maintenance costs rather than initial installation price, this compounding advantage is where the economic case for prefabricated insulation is the strongest. Due to downtime, labor, and material, there is a substantial difference in cost between a system that is consumed by maintenance access and one that survives intact, multiplied across a pipe and fitting population of a significant size over a twenty-year operating horizon.

Prefabrication and the Standardization of Complex Projects

A large industrial project may have dozens of different pipe sizes, multiple piping system types, and fitting populations that include hundreds of individual component configurations. Managing insulation across that complexity with field fabrication requires extensive installer coordination, significant material waste from cutting errors, and quality oversight across a wide range of individual tasks.

Factory prefabrication allows that complexity to be resolved at the engineering and manufacturing stage rather than the installation stage. Component configurations are defined, engineered, and produced to specification before the project begins. On site, the installation process is greatly simplified to a logical, coded placement sequence rather than a field engineering exercise repeated at every fitting. Material waste is minimized because components are manufactured to fit rather than designed from generic material on-site. And the documentation trail from factory production provides a quality record that field fabrication seldom generates.

Discuss Your Project with a Dragon Jacket Engineer

Whether you are specifying insulation for a new industrial project, evaluating options for a facility expansion, or reconsidering retrofitting your insulation after experience with field-fabricated systems that do not perform to your standards, Dragon Jacket Insulation can help you understand what factory prefabrication would mean for your specific project scope and operating environment.

Contact Dragon Jacket today to ask a product question, request a quote, or schedule a product demonstration.

How Insulation Impacts Equipment Reliability

By Pipe Insulation

The reliability of industrial equipment is a top priority in any plant because unplanned downtime causes serious problems. It has both direct and indirect costs: lost production, crisis response (cleanup, repair labor, replacement parts), and the cascading effects that an equipment failure can have on connected systems and processes. To avoid the problems that unexpected equipment failures create, facilities usually develop thorough predictive maintenance programs, condition monitoring equipment and inspections, and equipment redundancy to keep critical assets running.

The insulation that covers process piping and equipment directly affects the reliability of these industrial assets. Insulation is not a passive wrapping that sits around a pipe and does nothing else. It is an active factor in determining whether the equipment it covers lasts as long as it should, performs as designed, and can be maintained on a planned schedule rather than an emergency one.

Dragon Jacket Insulation (DJI) has reengineered industrial insulation from the ground up to provide the level of reliability that has been lacking in industrial applications. DJI’s prefabricated, fully encapsulated pipe, fitting, and tank insulation systems turn insulation into a long-term asset instead of a consumable expense. With water impermeability, consistent thermal performance, structural stability, and a 20+ year service life, Dragon Jacket materially improves the relationship between insulation quality and equipment reliability, positively impacting a facility’s performance in terms of corrosion rates, process stability, and maintenance frequency.

Corrosion Is an Insulation Problem as Much as a Materials Problem

Corrosion under insulation (CUI) is one of the leading causes of premature equipment and pipe failure in industrial facilities, and it is fundamentally an insulation problem. Bare pipe corrodes at a predictable rate determined by the pipe material, the process fluid, and the environment.

The facilities most vulnerable to corrosion under insulation are not necessarily the ones in the harshest external environments; they are the ones with insulation systems that absorb and retain moisture against the pipe substrate — and conventional fibrous insulation does exactly that once its jacket integrity is compromised.

Traditional insulation creates CUI vulnerability; the layered system is not waterproof, and all it takes is one outer jacket breach to create the ideal conditions for CUI. Once water gains an entry, fibrous insulation absorbs and holds water, resulting in wet insulation across a broad area of pipe within a relatively short time. That moisture will remain in contact with the pipe until the insulation is removed.

Pipe under wet insulation corrodes at a rate that is often significantly higher than bare pipe, because wet insulation creates a persistently moist environment at the pipe surface — one that is warm enough to accelerate electrochemical activity but enclosed enough that the moisture never evaporates and the corrosion never dries out.

In the meantime, the corrosion that develops is not visible and is generally not detected by most condition monitoring systems. The corrosion will not manifest itself until an inspection forces remediation, or, worse, until wall loss has progressed to the point where it results in a leak or a failure.

The reliability implication of using inferior insulation is direct. A pipe that is corroding under its insulation is a pipe whose failure is being scheduled by the insulation system, not by the process conditions or the material specification. In contrast, insulation that excludes moisture by design reliably eliminates this mechanism entirely; the pipe cannot corrode in an environment where moisture never reaches it.

Process Temperature Stability and Equipment Stress

Process equipment is designed to operate within defined temperature ranges, and the job of insulation is to keep it within those tolerances. Heat exchangers, pumps, compressors, valves, and instrumentation all have operating parameters that assume the process fluid arriving at them is within the specified temperature window. When insulation on the piping feeding that equipment is degraded or inconsistent, process fluid temperatures vary in ways that the equipment was not designed to accommodate on a continuous basis, and the quality of process fluids themselves may be compromised.

The effects of chronic process temperature variability on equipment reliability are cumulative and often subtle. For example, heat exchangers that receive fluid outside their design temperature range operate with reduced efficiency and experience thermal stress at tube sheets and connections that can accelerate fatigue over time. Pumps handling fluid that is cooler than specified may experience viscosity-related performance issues that increase mechanical load and accelerate wear. Instrumentation calibrated for a specific process temperature range produces less reliable readings when actual temperatures vary from design conditions, which can affect process control quality and trigger unnecessary interventions or allow genuine process problems to go undetected.

Process Temperature Stability and Thermal Stress

Insulation that maintains consistent process fluid temperatures from the point of heating (or cooling) to the point of use reduces the thermal variability that equipment must accommodate during normal operations. That consistency is not merely an energy efficiency benefit; it is a reliability benefit that shows up in longer equipment service intervals, more stable process control, fewer temperature-related maintenance events, and more dependable process quality.

Freeze Events and Their Consequences for Equipment

In cold climate applications, inadequate pipe insulation is often a direct cause of freeze events, which are among the most damaging things that can happen to process equipment and piping systems. When process fluid freezes in a line, the consequences range from flow blockage that shuts down the process to pipe rupture from ice expansion that causes physical damage requiring significant repair or replacement.

The equipment damage from freeze events extends beyond the pipe itself. Pumps that cavitate or run dry when a frozen line is blocked create a vacuum, accelerating wear and causing potential seal failure. Control valves and instrumentation on frozen lines may be damaged by ice formation or by the mechanical forces exerted when frozen lines are thawed improperly. Heat trace systems that are tasked with recovering a line after a freeze event (rather than prevent freezing in the first place) operate at higher load than specified and experience accelerated wear or fail as a result.

Insulation that can maintain adequate and consistent thermal protection across cold ambient conditions, including at fittings, valves, and support points where conventional insulation is thinnest, prevents freeze events, eliminating that as an operational risk.

Mechanical Damage to Pipes and Equipment Starts at the Insulation Surface

Physical impact is a routine reality in industrial facilities. Equipment is moved, tools are dropped, vehicles operate near pipe racks, and maintenance personnel work in close proximity to insulated lines on a regular basis. In outdoor facilities, weather events create more vulnerabilities. In facilities with conventional fibrous insulation systems, those types of physical contact result in damage to the insulation: compressed material, cracked mastic, or bent or torn jacketing will rarely trigger a maintenance response unless the pipe beneath is damaged.

The problem is that mechanical damage to conventional insulation creates entry points for moisture and affects the performance of the damaged insulation. A dent in a metal jacket that has separated the jacket from the insulation beneath it is a water collection point. Compressed insulation at a contact point is a thermal bridge. Cracked mastic at a transition is a moisture entry point. None of these damage modes is immediately critical, but each of them initiates a degradation pathway that affects the underlying condition of the pipe and equipment over time.

Insulation with genuine impact resistance — not a protective jacket over a vulnerable core, but a structurally tough encapsulation that resists penetration and deformation — absorbs physical contact without creating these degradation pathways. The pipe beneath is protected not only thermally but physically, and the insulation system itself does not require inspection and repair after routine contact in the way that conventional systems do.

Maintenance Frequency and What Drives It

In facilities with reliable insulation systems, maintenance on insulated pipe and equipment is driven by planned inspection schedules and the actual condition of the assets. But in facilities with degraded or unreliable insulation, maintenance frequency is partly driven by the insulation itself. Reliable insulation is such a critical factor in industrial operations that the problems caused by insulation failure — replacing damaged sections, responding to corrosion findings, dealing with freeze events, and managing the access problems — impact the efficiency and even the profitability of the facility’s core operations.

In this environment, insulation activities are also a source of equipment risk. Every time a system is shut down, a valve is operated, or a line is accessed for inspection or repair, there is a higher probability of introducing a new issue, caused by incidental events such as disturbing a gasket during disassembly, failing to fully tighten a fitting on reassembly, or introducing an unexpected error when a control system must be restarted. Maintenance events driven by insulation problems increase this exposure without delivering any compensating reliability benefit.

Even more, traditional insulation is not designed for removal and reinstallation. Every inspection and every replacement results in additional labor costs, material costs, and waste.

Dragon Jacket Insulation changes this dynamic, enabling industrial facilities to reduce maintenance frequency to the minimum required by actual equipment condition rather than by insulation-driven problems. It offers direct reliability improvements: fewer unplanned interventions, more predictable maintenance schedules, and less equipment exposure during access events. All of these factors contribute to better operational outcomes over the operating life of the facility.

The Long View on Insulation and Equipment Life

Dragon Jacket Insulation creates conditions in which the equipment in industrial facilities can last longer, and the mechanisms for achieving this are straightforward: significantly decreased likelihood of corrosion, more stable process temperatures, fewer freeze events, less mechanical damage as a result of insulation degradation or failure, and a maintenance program that is driven by equipment condition rather than insulation condition. Each of these factors extends the service life of individual assets and reduces the frequency and severity of reliability events across the facility.

For facility engineers and operations managers who think about equipment reliability over a ten- or twenty-year operational horizon, insulation specification should not be a peripheral decision, but a critical factor in the long-term performance of every asset the insulation covers.

Contact Dragon Jacket to Speak to an Engineer

If your facility is dealing with reliability issues that trace back to insulation performance, Dragon Jacket Insulation can help you evaluate how our more durable, fully encapsulated system can make a measurable difference. Contact Dragon Jacket today to ask a product question, request a quote, or schedule a product demonstration.

Questions Engineers Ask About Dragon Jacket’s Insulation Technology

By Pipe Insulation

When EPCs evaluate an insulation system for a large-scale industrial project, the questions they ask are specific and relate to practical matters: R-value, operating temperature range, moisture behavior, installation requirements, compatibility with existing systems, etc. These factors indicate whether a product meets performance requirements in the actual conditions of a facility being built or maintained. But these factors matter not just at the moment of installation. They are parameters that define ongoing performance requirements. Unfortunately, that is where some legacy systems expose their weaknesses.

Dragon Jacket Insulation manufactures prefabricated, fully encapsulated pipe and tank insulation systems designed to endure for uses across a broad spectrum of industrial applications, including oil and gas, chemical processing, data centers, food and beverage, mining, water, and wastewater. Because we have engineered and manufacture a system that is radically different from traditional fibrous and layered industrial insulation systems, we receive a lot of inquiries about how our insulation performs and what makes it different. To cut right to the chase and save you time, here are some of the questions engineers most commonly ask when they are initially introduced to Dragon Jacket Insulation.

What is the R-value, and does it stay stable over time?

As our specifications state, Dragon Jacket Insulation’s closed-cell foam core delivers a static R-value of 6.25 per inch, or 12.53 for a standard two-inch thickness. Here, the word static is key. Many insulation materials are rated under ideal, lab-controlled conditions, but ultimately deliver lower effective R-values in the field as the materials progressively degrade due to moisture absorption, compression, or material deterioration, reducing their thermal resistance over time.

Dragon Jacket’s foam core is completely encapsulated in a seamless polyurea shell that excludes moisture, and this structure is dimensionally stable. As a result, the R-value does not degrade through the mechanisms that reduce performance in conventional fibrous systems. The encapsulation is designed to remain intact across a 20+ year service life, which allows it to provide the same R-value at year fifteen as at installation.

What is the operating temperature range?

Dragon Jacket insulation systems are rated for an operating temperature range of -60 degrees Fahrenheit to +350 degrees Fahrenheit, (-51 degrees Celsius to +176 degrees Celsius). That range covers the large majority of industrial process piping applications, including cryogenic storage lines at the cold end and steam and high-temperature process lines at the upper end. Engineers specifying for applications near either boundary of that range should contact Dragon Jacket’s technical team to confirm suitability for the specific operating conditions.

How does it handle moisture and condensation?

Moisture management is where Dragon Jacket’s performance stands out, diverging significantly from conventional insulation systems. The closed-cell foam core simply does not absorb water; the cellular structure is closed, which means there is no pathway for moisture to migrate through the foam matrix. The polyurea encapsulation surrounding the core is fully waterproof and forms a continuous, seamless barrier across the entire surface of each component, including at edges and transitions.

On cold pipe applications, where condensation on the outer insulation surface is a concern, the impermeable polyurea shell prevents condensation from penetrating into the insulation or reaching the pipe substrate. There is no separate vapor barrier layer to install, seal, or maintain;  the monolithic encapsulation itself functions as the vapor barrier. This simplifies installation in cold applications and eliminates the vapor barrier continuity problems that develop at joints and penetrations in conventional systems.

Is cladding or jacketing required?

No. One of the practical installation advantages of Dragon Jacket is that no additional cladding or jacketing is required. The polyurea shell is the finished exterior surface of the insulation. It is UV-resistant, impact-resistant, chemical-resistant, and waterproof as manufactured. Installing a separate metal jacket or other cladding over Dragon Jacket components is unnecessary, adding nothing to performance. For EPC contractors and facility operators, the elimination of cladding as a separate scope item simplifies both the installation process and the long-term maintenance picture.

What are its physical durability characteristics?

Dragon Jacket’s polyurea encapsulation provides impact resistance, UV resistance, and resistance to a broad range of industrial chemicals including hydrocarbons, petroleum derivatives, and caustic cleaning agents. The system has been wind-resistance rated above 95 miles per hour, which is relevant for above-ground outdoor installations in high-wind environments.

The rigid shell does not deform under sustained mechanical load in the way that fibrous insulation compresses at support points; it maintains its thickness and coverage under the compressive forces that occur at pipe supports and saddle locations.

The foam core does not settle, migrate, or compress over time. Unlike flexible fill materials that redistribute within a jacket as a result of compression or gravity and create thin spots, closed-cell foam maintains its geometry and density across the service life of the installation. The insulation’s physical coverage and thermal performance remain consistent through normal service.

How does it perform at pipe support and saddle points?

Support points are typically one of the highest-failure locations in conventional insulation systems. Fibrous and flexible insulation compresses under pipe load at support contact points, which reduces insulation thickness, creates thermal bridges, and concentrates moisture exposure at the locations where compression has damaged the material. Over time, this compression is permanent and cumulative. Fibrous systems are also notorious for being inconsistently applied and complicated at support and saddle points, because they have to be field-fabricated by insulation subcontractors.

Dragon Jacket manufactures dedicated pipe support and saddle components custom-engineered and configured for these components to match as-built system architecture. At these junctions, the structural polyurea shell distributes compressive load across the panel surface rather than allowing point loading to crush the insulating foam core. As a result, insulation thickness, and therefore R-value, at support points can be maintained even under sustained load. This means that the thermal bridging and moisture vulnerability that compression creates in conventional systems are not an issue. For engineers designing support spacing and insulation continuity across support locations, this is a meaningful performance distinction that gives them maximum flexibility, since they do not have to consider insulation constraints in the design.

What piping system types is it compatible with?

Dragon Jacket manufactures insulation components for a wide range of industrial piping configurations, including welded and flanged piping systems, grooved mechanical piping systems, and municipal and fusion piping systems including ductile iron, PVC, and HDPE fusion connections. Our product line covers straight runs, elbows in short and long radius configurations, tees, reducers, flanges, valves, and pipe support assemblies. For engineers working across multiple piping system types on a single project, the availability of compatible components across all configurations allows a single insulation system to be specified across the full scope rather than requiring different products for different piping types.

How does it interact with heat trace systems?

Dragon Jacket is compatible with heat trace and heat tape systems and is specifically engineered to enhance their performance. Heat trace systems are sized based on the heat loss characteristics of the insulated pipe; insulation with a stable, consistent R-value allows the heat trace to be sized more efficiently and to operate at lower output than insulation with variable or degrading thermal performance.

Dragon Jacket’s static R-value, maintained consistently across the full service life of the installation, keeps heat trace systems operating within their designed parameters rather than working progressively harder to compensate for degrading insulation. For applications with freeze protection requirements, this translates directly to lower heat trace energy consumption and longer heat trace service life.

Can it be removed and reinstalled for inspection and maintenance?

This is one of the features that EPC engineers and facility maintenance teams find most operationally significant. Dragon Jacket components are generally single-unit monolithic components that clamshell onto the fitting they insulate, secured by a steel band or other approved fastener. They are intentionally designed to make them easy to install and remove. When removed for inspection, maintenance, or repair, the component is simply set aside, then reinstalled. Reinstallation restores the original thermal performance, moisture protection, and coverage geometry of the system — there is no need to discard anything but the cut fasteners;  no field fabrication is required and there is no degradation in performance quality.

For facilities with active scheduled pipe inspection programs, or for process lines that require periodic valve and instrument maintenance, this reusability eliminates the waste, material, and labor cost of insulation replacement after each access event, removing the tension that commonly exists between adhering to inspection programs and accounting for insulation maintenance budgets.

What approvals and compliance certifications does Dragon Jacket carry?

Dragon Jacket insulation carries FDA approval for incidental food contact, which is relevant for food and beverage and pharmaceutical applications where process piping insulation may come into contact with product or be subject to sanitation protocols. The product line is compliant with Build America, Buy America requirements, which is a procurement consideration for public infrastructure projects receiving federal funding. Dragon Jacket also carries a five-year limited product warranty — an industry-leading commitment that reflects the manufacturer’s confidence in long-term field performance; however, lifespan with regular use can exceed 20 years.

What does installation actually require?

Installation for Dragon Jacket Insulation is another factor where traditional fibrous layered systems cannot compare. Dragon Jacket components do not require specialized insulation subcontractors or specialized training. Components arrive on site palletized and coded for placement, and installation is completed using standard tools by general labor or on-site maintenance personnel. Dragon Jacket publishes installation documentation and maintains a video library covering installation procedures for the full product range, including specialized fittings, valves, tanks, and other components with irregular geometry.

The average installation time is significantly faster than conventional fibrous systems. In many applications, the speed difference is substantial enough to positively affect project schedules and mechanical completion milestones on large installations. Pipe insulation is a relatively late-stage construction task; as a result, because Dragon Jacket can be on-site early and installed by construction or maintenance personnel who do not need specialized training, industrial insulation can be removed as a project bottleneck.

Get More Technical Support from Dragon Jacket

If your project involves specifications or performance requirements not addressed by the  answers above, Dragon Jacket’s technical team is available to work through your application-specific questions, provide material data sheets and testing documentation, and help develop an insulation specification suited to your project conditions.

To speak to a product engineer, request a quote, or schedule a product demonstration, contact Dragon Jacket today.



Reduce Environmental Impact with Long-Lasting Industrial Insulation

By Pipe Insulation

Environmental performance in industrial facilities has increasingly become a regulatory compliance and operational concern, not just a reputational one. Regulatory frameworks governing energy efficiency, waste generation, and emissions are tightening across most industrial sectors. As a result, facility operators are being required to address and account for energy consumption, material waste, and operational emissions in ways that were discretionary a decade ago, but are legally mandatory or contractually required today.

Against that backdrop, insulation is a key component worth examining, not as a peripheral environmental consideration, but as a core system with direct and often significant impact on energy efficiency, waste output, and the long-term resource consumption of the facility.

Dragon Jacket Insulation (DJI) was developed primarily to achieve performance and cost efficiencies for industrial plants. DJI manufactures prefabricated, fully encapsulated pipe, fitting, and tank insulation systems that are designed to be fully reusable. Because DJI insulation is not a consumable, it offers industrial plants twenty-plus years of service life with no degradation in performance. The operational case for long-lasting insulation in industrial facilities is grounded in straightforward efficiency and cost arguments rather than in environmental marketing, but these same operational efficiencies produce direct environmental benefits that enable industrial plants to better meet sustainability targets, as well.

Energy Loss Is an Operational and Regulatory Problem

Heat loss through inadequate or degraded insulation is wasted energy ; it was generated, consumed, and paid for, but never fully utilized. In facilities where process heating and cooling represent significant operating costs, the energy lost through poorly performing insulation is a direct drag on operational efficiency that manifests itself in fuel and utility budgets every month.

Regulatory frameworks that set energy efficiency standards for industrial facilities — whether through direct mandates, emissions reporting requirements, or carbon accounting obligations — make energy loss a true liability with respect to both compliance exposure and cost. A facility that cannot demonstrate efficient thermal management across its process systems is increasingly likely to face regulatory scrutiny, reporting obligations, or requirements to invest in efficiency improvements. With Dragon Jacket, many of those issues can be addressed at the insulation specification stage.

But the case for high-performance, long-lasting insulation does not require any environmental motivation beyond operational economics. Insulation that maintains its rated R-value across a twenty-year service life delivers consistent energy savings throughout that period. Insulation that degrades — through moisture absorption, compression, mechanical damage, or material breakdown — delivers progressively less thermal protection and therefore progressively higher energy loss as it ages. The difference between those two curves, integrated across a twenty-year operating horizon on a facility with significant insulated pipe and tank populations, is a substantial energy and cost figure. But the life-cycle is only one part of the efficiency calculation for both cost and environmental impact.

Material Waste and the Replacement Cycle Problem

Conventional multi-layer insulation systems, such as fiberglass, mineral wool, gel, and foam that degrade within five to ten years of installation generate a disposal and replacement cycle. When fibrous insulation is removed from a pipe or tank, it becomes waste that must be handled, transported, and disposed of. Removal may be needed for inspection or repair, because the insulation has failed or been damaged during maintenance access, or simply because it has reached the end of its useful service life. Depending on the insulation type and the process environment it was installed in, that disposal may involve specific handling requirements for contaminated or chemically exposed material.

The cumulative waste generated by a facility that replaces its insulation on a five-to-seven year cycle over a thirty-year operational lifespan is substantially greater than the waste generated by a facility that installs a system that can last a full thirty years. That difference does not amount to a marginal environmental footnote; it represents a real difference in material consumption, disposal cost, and the operational disruption associated with each replacement cycle.

For facilities operating under waste reduction commitments or targets, reducing insulation replacement frequency by adopting reusable insulation is a practical waste reduction measure with direct cost benefits in terms of time, labor, and waste management that compound continuously over the service life of the installation.

Refrigerant and Process Fluid Losses

In facilities where process cooling systems, refrigeration circuits, or cryogenic storage lines must be insulated, the consistency and reliability of the thermal performance of the insulation has a direct bearing on process fluid consumption and refrigerant efficiency. Inadequate insulation enables heat ingress that increases the cooling load the system must manage. That, in turn, increases refrigerant circulation, compressor load, and the rate at which refrigerant losses (through normal system cycling or minor leaks) accumulate over time, putting significant stress on the entire process system.

Refrigerant management becomes a regulatory concern because of the cost of refrigerant as well as the emissions implications of refrigerant loss. Facilities with refrigeration systems operating under degraded or unreliable insulation are managing a higher refrigerant consumption rate than the system was designed for.

In contrast, insulation that maintains consistent thermal performance on cold lines reduces the thermal load on refrigeration systems. The reduction in refrigerant consumption and any emissions associated with refrigerant loss can be significant over the operational life of the facility.

The same logic applies to steam and heat systems. Insulation that allows excessive heat loss from steam distribution lines forces boilers and heat generation systems to work harder to maintain process temperatures; that increases fuel consumption and the combustion emissions associated with it. For facilities with boiler systems operating under air quality permits or emissions reporting requirements, the direct connection between insulation performance and combustion emissions militates in favor of a long-lasting insulation solution like DJI’s that does not suffer from performance degradation over its lifespan.

Reducing Chemical Exposure Risks

Insulation failure in chemical processing, oil and gas, and other industrial environments does not only affect the pipe beneath the insulation; it creates environmental exposure risks when process fluids leak or when corrosion under insulation produces pipe failures that release process chemicals into the facility or surrounding environment. For process fluid releases subject to regulatory requirements, that triggers a host of problems: reporting, remediation, health and safety concerns, and production loss in addition to the possibility of fines, liability, and increased regulatory oversight.

Insulation that reliably excludes moisture and prevents corrosion under insulation is therefore not only an operational benefit, but a risk reduction measure that prevents the types of uncontrolled releases that trigger regulatory response and unwanted public attention. For facilities operating under environmental permits that include spill prevention, containment, or release reporting requirements, reducing the probability of corrosion-driven pipe failure through better insulation specification is a practical risk management measure with direct regulatory relevance.

Long Service Life as an Efficiency Multiplier

The environmental efficiency argument for long-lasting insulation ultimately comes down to a simple calculation: a system that performs consistently for twenty-plus years without needing replacement delivers the required thermal protection at a fraction of the time, cost, and effort associated with the material consumption, installation labor, disposal activity, and operational disruption of a system that must be replaced three or more times over the same period.

That efficiency is not just a separate environmental benefit layered on top of the operational benefits of good insulation; it is the same benefit viewed through a different lens. Less energy loss means lower fuel consumption and lower emissions from heating and cooling systems. Less replacement means less material consumption, less disposal, and less installation activity. Less corrosion-driven failure means fewer process fluid releases and lower remediation exposure. Each of these outcomes follows directly from specifying insulation that is built to last — and each of them has a cost implication that facilities operating under tightening regulatory and contractual efficiency requirements cannot afford to ignore.

Contact Dragon Jacket to Speak with One of Our Engineers and Discuss Your Application

If your facility is evaluating insulation systems with an eye toward energy efficiency as well as environmental regulatory compliance, or even if you are focused on finding insulation that delivers consistent performance over the life of the asset rather than requiring repeated replacement, Dragon Jacket Insulation can help you build a specification that meets your operational and compliance requirements.

Contact Dragon Jacket Insulation to ask a product question, request a quote, or schedule a product demonstration. Discover insulation that is a long-term capital investment in efficiency and sustainability rather than a consumable expense.



Thermal Expansion and Insulation: What Engineers Should Know About Dragon Jacket Insulation

By Insulation

Thermal expansion is a fundamental reality of industrial piping systems. Pipes (like almost everything else) expand and contract with temperature changes, and everything connected to them — supports, hangers, expansion joints, and insulation — has to accommodate that movement without failing.

For most insulation materials, thermal expansion in the pipe beneath them is a source of progressive damage through time as the system goes through cycles of expansion and contraction. Seams open, jackets crack, and the mechanical stress of repeated cycles works at every joint and transition until something finally gives. For engineers specifying insulation on systems with significant temperature differentials or wide ambient swings, how an insulation system handles thermal movement is as important a performance criterion as R-value or moisture resistance.

Unlike traditional insulation materials, the closed-cell foam and polyurea encapsulation system manufactured by Dragon Jacket Insulation functions well under the thermal conditions that industrial piping actually experiences. Its prefabricated pipe and tank insulation systems are engineered for long-term performance in demanding industrial environments, including systems where thermal expansion is an active design consideration.

What Thermal Expansion Does to Insulation Systems

When a pipe heats up, expansion is in every dimension; it gets longer and its diameter increases. The amount of movement involved will depend on the pipe material, the pipe diameter, the temperature differential, and the length of the run. On a long steel process line with constant cycling between ambient and elevated operating temperature, linear expansion can be significant enough to require dedicated expansion loops or expansion joints in the piping design. The insulation covering that pipe should accommodate that movement.

Insulation systems that cannot accommodate pipe movement without immediate damage will nevertheless accumulate damage incrementally through every thermal cycle the system experiences:

  • Rigid insulation that is bonded directly to the pipe surface will crack or disbond as the pipe moves beneath it.
  • Jacketed insulation systems develop open seams at lap joints and terminations as the pipe pushes and pulls the insulation in directions the jacket was not designed to handle.
  • At elbows, tees, and other fittings — where thermal movement creates both axial and lateral forces on the insulation — the mechanical stress on conventional insulation systems concentrates at transitions and accelerates failure at those points.

The damage from thermal cycling is cumulative and often latent until it is advanced. Seams that have opened slightly allow moisture entry. Jacket laps that have shifted create thin spots in coverage. Insulation that has cracked internally delivers reduced R-value at the crack location without showing obvious external damage. Over the operating life of a facility, thermal cycling is one of the primary mechanisms through which insulation systems that were installed correctly degrade into systems that are not performing to specification.

The Material Properties That Matter

For engineers evaluating how an insulation system will respond to thermal expansion, several material properties are directly relevant.

The coefficient of thermal expansion of the insulation material determines how much the insulation itself expands and contracts with temperature changes. If the insulation expands at a significantly different rate than the pipe it is covering, the differential movement between pipe and insulation creates shear stress at their interface — stress that either debonds the insulation from the pipe or deforms the insulation at constrained points.

Dimensional stability — that is, the ability of an insulation material to maintain its shape and thickness under sustained thermal loading — is a related but distinct property. An insulation material that creeps, compresses, or deforms under elevated temperature loses coverage at the deformed locations and may develop gaps at edges and transitions as the material shifts from its installed position.

Flexibility at the material level is also relevant. A material that can accommodate small amounts of relative movement between the pipe and the insulation without cracking or disbonding will perform better through thermal cycling than a brittle material that fractures when the pipe moves beneath it.

Finally, the behavior of the insulation system at joints and transitions — not just the behavior of the material in isolated locations — determines how well thermal movement is managed across the full length of an insulated run. A system whose components connect in a way that allows controlled relative movement at joints without opening moisture entry points handles thermal cycling fundamentally differently than a system whose joints are rigid and sealed in a way that breaks down when the pipe moves.

How Dragon Jacket’s Closed-Cell Foam Core Responds to Thermal Movement

Dragon Jacket’s insulation core is a closed-cell polyurethane foam with a static R-value of 6.25 per inch and an operating temperature range of minus 60 degrees to plus 350 degrees Fahrenheit. Within that range — which covers the vast majority of industrial process piping applications — the foam core maintains its cellular structure and thermal performance without significant dimensional change.

Closed-cell foam has a low coefficient of thermal expansion relative to most metals, which means that differential expansion between the foam and a steel pipe is modest across the operating temperature range. More importantly, the foam’s cellular structure gives it a degree of compressibility and flexibility that brittle insulation materials — calcium silicate, cellular glass, rigid fiberglass board — do not possess. When the pipe beneath a Dragon Jacket component expands, the foam core can accommodate small amounts of differential movement through elastic deformation at the pipe-insulation interface rather than cracking or disbonding. The foam returns to its original dimensions when the pipe contracts, without permanent deformation or loss of coverage.

This behavior is particularly significant at pipe support points, where thermal expansion forces are often highest and where the insulation is also subject to compressive load from the pipe weight. Conventional insulation at support points is prone to compression failure under sustained load, which creates thin spots that then experience concentrated thermal stress during expansion cycles. Dragon Jacket’s rigid encapsulated system maintains its thickness under compressive load; the structural polyurea shell distributes load across the panel surface rather than allowing point loading to compress the foam core, which means the insulation at support points retains both its mechanical and thermal performance through thermal cycling.

The Polyurea Shell and Dimensional Stability Under Temperature

The polyurea encapsulation that surrounds Dragon Jacket’s foam core contributes to thermal performance in ways that go beyond moisture resistance. Polyurea has good dimensional stability across a wide temperature range, maintaining its shape and structural properties from well below ambient through the upper end of Dragon Jacket’s operating temperature range. It does not soften, creep, or deform at elevated temperatures in the way that some polymer-based jacketing materials do, which means the geometric accuracy of prefabricated components is maintained through repeated thermal cycling rather than gradually distorting over the service life of the installation.

The flexibility of polyurea — it has considerable elongation capacity before fracture, unlike brittle shell materials — also means that the encapsulation can accommodate the small surface strains that thermal movement in the foam core produces without cracking. This is not the same as saying the system is designed to flex significantly (it is not), but it means that the minor surface strains associated with thermal cycling do not initiate cracking in the shell the way they would in a more brittle encapsulation material.

For installations that cycle repeatedly between cold and hot conditions, such as a line that is shut down and restarted regularly, a system in a climate with wide seasonal or even daily temperature swings, or an application where process temperature varies significantly during normal operation, the combination of a stable foam core and a dimensionally stable, crack-resistant shell produces an insulation system that handles repeated thermal cycling better than conventional alternatives.

Expansion Joints and Insulation Continuity

On pipe runs where thermal expansion is large enough to require dedicated expansion joints or loops, the insulation system must manage a transition at those locations that conventional systems handle poorly. An expansion joint by definition moves, and insulation that bridges it rigidly will be damaged as the joint operates through its designed movement range.

The standard approach with conventional insulation is to terminate the insulation on each side of the expansion joint and leave the joint itself uninsulated or covered with a flexible blanket. Leaving the joint uninsulated creates a thermal bridge at a point in the line where heat loss or heat gain may be significant.

Flexible blanket covers at expansion joints are subject to the same durability limitations as blanket insulation generally: they degrade through UV exposure, mechanical contact, and repeated movement cycles faster than the surrounding hard insulation.

Prefabricated insulation designed to terminate cleanly at expansion joint locations — with well-defined end conditions that do not pull or crack as the joint moves — addresses the insulation continuity problem more reliably than field-improvised solutions. For engineers designing insulation systems on lines with expansion joints, specifying how the insulation terminates and transitions at those locations is as important as specifying the insulation material itself.

Contact Dragon Jacket for Engineering Support

For engineers working through insulation specifications on systems with significant thermal expansion considerations, a few practical points are worth carrying into the specification process:

  • Identify the pipe circuits with the largest temperature differentials and the longest unsupported runs, as these will experience the most linear thermal movement and place the highest demands on insulation system flexibility and joint design.
  • Pay particular attention to insulation at support points and guide locations, where thermal movement forces concentrate and where insulation compression is a concurrent risk.
  • Evaluate insulation systems not only on their rated R-value but on their dimensional stability at operating temperature, their behavior under compressive load, and how their component joints are designed to handle relative movement.
  • Consider the full thermal cycle — startup, shutdown, seasonal variation, and process temperature fluctuation — rather than only the steady-state operating condition when assessing insulation system requirements.

Dragon Jacket’s engineering team is available to work through thermal expansion considerations for specific applications and system architectures and to help identify where prefabricated rigid insulation systems offer performance advantages over conventional approaches on thermally active pipe circuits.

If you are specifying insulation for a system with significant thermal expansion requirements, or if you are troubleshooting insulation performance on a thermally active line where conventional systems have not held up, contact Dragon Jacket to speak to one of our engineers, request a quote, or schedule a product demonstration. Dragon Jacket Insulation can provide technical support, product data, and application-specific guidance.



Industrial Valve Insulation: Reducing Heat Loss at Critical Points

By Insulation

Valves are among the most thermally vulnerable components in any insulated piping system. They are geometrically complex, accessed frequently, and represent a significant concentration of metal mass at a single point in the line. All of these factors make them harder to insulate effectively than straight piping, or even other complex components like bends, Ts, Ys, and tanks.

In a facility with hundreds or even thousands of valves on insulated process lines, the cumulative heat loss through poorly insulated or uninsulated valve bodies imposes a real and measurable energy cost. It is also a symptom of a broader problem: most conventional insulation systems are not well suited to valve geometry, and the workarounds facilities use to address that gap — removable blankets, field-fabricated covers, or simply leaving valves uninsulated — each carry their own performance and cost consequences.

But there is a solution. Dragon Jacket Insulation uses 3-D modeling for all insulation systems, manufacturing prefabricated and precisely measured valve insulation components designed to handle the geometry, access requirements, and durability demands of industrial valve applications without the compromises that conventional approaches require.

Why Valves Are Difficult to Insulate

A straight pipe run is the simplest insulation problem in a process facility. The geometry is consistent, the insulation can be cut to length and secured with minimal field fabrication, and the thermal performance is predictable. Valves are the opposite of that. A gate valve, ball valve, butterfly valve, or globe valve presents a three-dimensional geometry problem with irregular protrusions, actuator connections, stem penetrations, and bolted flange connections that conventional insulation cannot wrap cleanly without significant field fabrication effort and inevitable compromises in coverage. It is a messy, inconsistent, and time-consuming task.

The irregular surface area of a valve body also means that field-fabricated insulation rarely achieves consistent thickness across the entire component. Thin spots develop at transitions, protrusions, and stem connections — precisely the locations where the metal mass of the valve creates the greatest potential for heat loss. And because valves require periodic access for operation, testing, and maintenance, any insulation system that encases them well creates an access problem that the facility will need to solve repeatedly over the life of the valve.

The result in many facilities is that valves often end up being poorly insulated. Even if they are insulated well at the initial installation, field-fabricated materials will degrade quickly or may not be consistently and adequately reinstalled after maintenance. Alternatively, valves are covered with removable blankets that provide inconsistent thermal performance and deteriorate faster than the surrounding pipe insulation, or they are simply left uninsulated on the assumption that the heat loss is acceptable. None of these outcomes is ideal, and in a facility with significant valve populations on high-temperature or low-temperature process lines, none of them is cost-free.

The Heat Loss Problem at Valve Bodies

The thermal significance of an uninsulated or poorly insulated valve depends on the operating temperature of the line, the size of the valve, and the ambient conditions surrounding it. In industrial process applications, this data is worth paying attention to. A large valve body on a high-temperature steam or process line represents a substantial surface area of bare or poorly covered metal radiating heat directly to the surrounding environment. Across a valve population of any significant size, that heat loss accumulates into a measurable impact on process heating costs and system energy efficiency.

On cold process lines — chilled water systems, refrigerated product lines, cryogenic applications — the same dynamic runs in the opposite direction. Heat flowing into the process fluid at uninsulated valve bodies adds to the cooling load the system must manage, increasing energy consumption and affecting process temperature stability at sensitive points in the line. In a data center cooling system or a food processing refrigeration circuit, where temperature consistency affects both system efficiency and product quality, valve insulation is not an optional refinement; it lies at the very heart of effective operations.

There is also a personnel safety dimension to valve heat loss. Valve bodies on high-temperature lines that are inadequately insulated present burn hazards to operators and maintenance personnel working in the area. In facilities with active safety programs and regulatory obligations around hot surface management, uninsulated or poorly insulated valves on high-temperature lines are a compliance issue as well as an energy issue.

Why Removable Blankets Fall Short

Removable insulation blankets have been used as a standard solution for valve insulation in many facilities largely by default; they are flexible enough to conform to irregular geometry, they can be custom-sized, and they are removable. For a problem that conventional hard insulation cannot address practically, they are an improvement over nothing.

The limitations of blanket insulation at valves, however, are significant enough that many facilities are actively reconsidering them. Blankets on valve bodies are subject to the same durability problems that affect blanket insulation elsewhere — jacket degradation, fill migration, fastener failure, and moisture absorption — but those problems are accelerated at valve locations because valves are accessed more frequently than most other components on the line.

Every removal and reinstallation cycle puts mechanical stress on the blanket’s jacket, fastening system, and fill material. Blankets are removed and set aside during any inspection or maintenance activity. After that is complete, reinstallation is usually inconsistent: fill isn’t redistributed and the blanket is not secured the same way, meaning that thermal coverage is often worse after the work than it was before.

Because of how they’re made, fill materials inside blankets simply do not maintain consistent thickness and coverage against the irregular geometry of a valve body over time. Fill follows gravity, migrating toward lower points; compression at contact points with protrusions and actuators creates thin spots. A blanket may be technically intact, but it is delivering significantly less thermal protection than its rated specification suggests because the fill material that provides the actual insulation value is no longer well-distributed.

Prefabricated Valve Insulation: Fit, Performance, and Access

Prefabricated rigid insulation components engineered to fit specific valve configurations address all of the geometry, performance, and access problems simultaneously. Rather than asking an installer to shape flexible material around a complex fitting in the field, a prefabricated valve insulation component is manufactured to match the actual geometry of the valve with consistent thickness and continuous coverage across all surfaces, including its body, flange connections, stem, and actuator interface.

The access requirement — the factor that makes valve insulation permanently challenging — is addressed by using prefabricated systems designed for removal and reinstallation from the outset. Dimensional accuracy makes installation quick and easy: the insulation component clamps on to fit the exact geometry and is secured with bands; the installation, removal, and reinstallation procedures are straightforward, eliminating the need for specialized insulation expertise. Because components are engineered to come apart cleanly and go back together, they enable access without destroying or degrading the insulation in any way. When the insulation is reinstalled following maintenance, thermal performance is restored to its original specification. There is no field fabrication, no replacement material, no waste, and no degradation in coverage quality.

Rigid, custom components provide consistent, even thermal performance that field-fabricated and blanket solutions cannot reliably match. Consistent insulation thickness across the full valve body means consistent R-value at every point, including at the flange faces and stem connections where conventional approaches are most likely to leave thin spots. The rigid closed-cell foam core does not migrate, compress, or settle over time, so the thermal performance of a prefabricated component at year five or year ten is substantially the same as it was at installation.

Valve Insulation Across Industrial Sectors

The valve insulation problem shows up across virtually every industrial sector where process piping is insulated, but the specific consequences of inadequate valve insulation vary by application.

  • In oil and gas facilities, valve bodies on production and gathering lines must be insulated to prevent freeze events and maintain flow assurance in cold ambient conditions.
  • Valves on high-temperature process lines in refineries and chemical plants contribute to facility-wide heat loss calculations that affect energy operating costs.
  • In food and beverage manufacturing, valves on heated process lines must maintain consistent product temperatures, and insulation that degrades or provides inconsistent coverage creates process variability that affects or even destroys product quality.
  • In water and wastewater facilities, large valves on buried or above-ground distribution lines require insulation that holds up to outdoor conditions and infrequent but disruptive access events.
  • In data center cooling systems, where energy efficiency is a primary operational metric, the cumulative heat gain through poorly insulated valve populations on chilled water circuits is a measurable drag on system performance.

In each of these sectors, the argument for prefabricated rigid valve insulation is the same: consistent thermal performance, reliable access, and durability that outlasts the replacement cycles that conventional approaches impose.

Contact Dragon Jacket About Your Valve Insulation Application

If your facility has valve populations on insulated process lines — whether you are dealing with heat loss, access problems, blanket degradation, or simply looking at a new installation where you want to specify the right system from the start — Dragon Jacket Insulation can help you evaluate your options and provide solutions to your most critical insulation challenges

Contact Dragon Jacket today to speak to one of our engineers, ask a product question, request a quote, or schedule a product demonstration.

Durability Under Pressure: How Dragon Jacket Handles Impact, Weather, and Wear

By Durability

Industrial insulation takes a beating. On any active facility — an oil and gas site, a chemical plant, a food processing operation, a water treatment facility — pipe and tank insulation is exposed to conditions that most conventional insulation materials were never designed to withstand for long. Equipment gets bumped. Washdowns happen. The sun hits the same surface every day for years. Winters are cold, summers are hot, and the insulation sitting between the process and the environment has to hold up through all of it without constant attention.

Dragon Jacket Insulation is built around a straightforward premise: if insulation is going to have to perform in real industrial conditions, it has to be physically tough, not just thermally rated. The closed-cell foam core and seamless polyurea encapsulation that make up every Dragon Jacket component are engineered specifically for the conditions that render conventional insulation systems terminal.

What Actually Destroys Conventional Insulation in the Field

Much conventional industrial insulation fails not because it was poorly specified for thermal performance, but because it was not built to survive the physical environment it was installed in. Fiberglass and mineral wool are excellent thermal insulators under laboratory conditions and even in some indoor industrial facilities where insulation faces little stress. In the field, however, they are soft, moisture-absorbent, and structurally fragile — properties that become liabilities the moment they are exposed to the daily reality of an operating industrial facility.

A forklift clip, a dropped tool, a hose dragged across a pipe run — any of these can tear or crush fibrous insulation in ways that are not always immediately visible but create gaps, thin spots, and moisture entry points that degrade performance from that point forward. Metal jacketing added to protect soft insulation introduces its own vulnerabilities at every seam, lap joint, and penetration, and those vulnerabilities compound over time as the jacketing expands and contracts with temperature cycles and the sealants holding it together age and crack.

The result is an insulation system whose real-world service life is considerably shorter than its rated thermal performance would suggest, and whose failure mode is gradual enough that facilities often do not recognize how much performance has been lost until they are replacing the system or dealing with the consequences of corrosion beneath it.

Impact Resistance: Built Into the Material, Not Added On

Dragon Jacket’s impact resistance is not a function of a protective layer applied over vulnerable insulation; it is a property of the polyurea shell itself. Polyurea is a material with high tensile strength and significant elasticity, which means it absorbs impact energy by flexing rather than fracturing. A blow that would crack a brittle material or compress a soft one is distributed across the shell surface and dissipated without penetrating to the insulating foam core beneath.

This matters practically in the kinds of environments where Dragon Jacket is deployed.

  • On a refinery pipe rack, equipment contacts the insulation regularly during maintenance and operations

  • On a mining site, insulated lines run through areas where heavy vehicles operate and physical abuse is constant

  • On a food processing line, high-pressure washdown equipment is directed at insulated surfaces on a regular schedule

In each of these environments, insulation that deforms, cracks, or compresses under physical contact is insulation that has started failing.

Because the polyurea shell is seamless — formed as a continuous encapsulation rather than assembled from separate protective pieces — there are no seams or joints where impact damage concentrates or where penetration is easier than elsewhere on the surface. The protection is consistent across the entire surface of every component, including at elbows, tees, and fittings where conventional jacketing systems have the most transitions and therefore the most vulnerability.

Weather Resistance Across the Full Range of Industrial Conditions

Industrial insulation installed outdoors faces a combination of weather stresses that accumulate over months and years.

  • UV radiation degrades most organic materials progressively, breaking down chemical bonds and causing surface cracking, chalking, and embrittlement that eventually compromises the material’s structural integrity.

  • Repeated wet-dry cycling drives moisture into any material with even minor permeability, and freeze-thaw cycling turns that absorbed moisture into a mechanical force that expands cracks and separates layers.

  • Wind loading — particularly at exposed above-ground installations — adds sustained mechanical stress that conventional jacketing systems manage imperfectly at seams and fasteners.

Dragon Jacket’s polyurea encapsulation is UV-stable, which means it does not chalk, crack, or embrittle under sustained UV exposure in the way that many polymer-based jacketing materials do. The closed-cell foam core does not absorb moisture, which eliminates the freeze-thaw damage mechanism that degrades conventional insulation from the inside out over winter cycling. The seamless shell has no joints or laps that wind can work open over time. And the system has been rated for wind resistance above 95 miles per hour — relevant for above-ground installations in regions with significant wind exposure, and for facilities in hurricane or high-wind risk zones.

That rating also reflects a broader point about how Dragon Jacket is tested. The performance claims on the product are not extrapolated from material data sheets. They are based on field performance in the actual conditions that industrial installations encounter, including North Dakota oilfield winters, coastal chemical facilities, and outdoor mining infrastructure where the environment does not make allowances for materials that need careful handling.

Chemical and Wash Resistance for Process Environments

Facilities that handle chemicals, food products, petroleum, or other process fluids expose their insulation to substances that conventional materials absorb, react with, or are physically degraded by over time:

  • Fibrous insulation that absorbs process chemicals holds them in contact with the pipe substrate, which accelerates corrosion and creates contamination risks in regulated environments.

  • Fabric jacketing on removable blanket insulation degrades through repeated chemical exposure and high-pressure washdowns.

  • Mastic coatings disbond from insulation surfaces when exposed to petroleum-based substances or aggressive cleaning agents.

Polyurea is chemically resistant to a broad range of industrial substances, including hydrocarbons, petroleum derivatives, and the caustic cleaning agents used in food, beverage, and pharmaceutical facilities. That resistance is a material property, not a surface treatment: it does not wash off, wear away, or require reapplication over the service life of the insulation. For facilities where washdowns are a daily or weekly operational activity, insulation that can be hosed down without degrading is a practical requirement, not a premium feature.

Dragon Jacket’s polyurea encapsulation also has no fibrous content that could contaminate a process stream if the insulation were damaged in a food or pharmaceutical environment — a compliance consideration that carries real weight in regulated facility audits.

Wear Over Time: What Twenty Years Actually Looks Like

Most conventional insulation is expected to be replaced on a cycle of five to ten years in demanding industrial environments. That replacement cycle is not a failure of the product specification; it is simply what the material can realistically deliver under conditions that are harder than the conditions under which its thermal ratings were established. Facilities factor ongoing insulation replacement into their maintenance budgets and manage it as a recurring operational cost.

Dragon Jacket is designed for a twenty-plus year service life under industrial operating conditions. That is not a marketing claim without a basis; it is a performance expectation grounded in what the material does and does not do over time. Closed-cell foam does not absorb moisture and does not compress under sustained load, so its thermal performance does not degrade through the mechanisms that degrade fibrous insulation over a service life. Polyurea does not embrittle through UV exposure, does not delaminate through wet-dry cycling, and does not corrode or oxidize in the way that metal jacketing does over years of outdoor service.

The practical implication for facility operators is that insulation installed today should still be performing as specified ten and fifteen years from now, not because conditions have been ideal, but because the material is built for conditions that are not. For facilities evaluating insulation on total cost of ownership rather than initial purchase price, the difference between a five-year replacement cycle and a twenty-year service life is a significant factor in the calculation.

Contact Dragon Jacket to Discuss Your Application with an Engineer

If your facility is dealing with insulation that is not holding up due to impact damage, weather degradation, chemical exposure, or simply age, Dragon Jacket can help you evaluate where a tougher, longer-lived system would make a significant operational and financial difference. Contact Dragon Jacket Insulation to speak to an engineer, request a system quote, or schedule a product demonstration.

Tank Roofs and Bases: How Dragon Jacket Insulation Performs for Tanks

By Tank Insulation

While industrial insulation is primarily associated with facility piping networks and runs, heated or cooled liquids and gases often require storage or transport on trucks, trains, or planes—and that means storing them in tanks.

Tanks present a different insulation challenge than piping. Where pipe insulation deals primarily with linear geometry and fitting transitions, tank insulation must address large surface areas, structural load points, exposure to standing water and ground moisture, and the practical reality that tanks are rarely taken out of service for insulation maintenance.

The consequences of insulation failure on a tank — corrosion on the shell, thermal loss from a poorly insulated roof, moisture accumulation beneath a base panel — develop slowly but carry significant remediation costs when they finally become visible.

Dragon Jacket Insulation manufactures industrial insulation for all applications, including prefabricated tank insulation systems for roofs, panels, and bases. Unlike traditional insulation, Dragon Jacket insulation is engineered to address the specific failure modes that industrial tanks face, providing optimal coverage for every surface that will hold up over the long service life that tank assets typically demand.

Why Tanks Require a Different Approach

A tank is not simply a very large pipe. The insulation demands at a tank roof are different from those at the shell panels, which are different again from those at the base. Each surface has a distinct exposure profile, a distinct structural relationship with the tank, and a distinct set of failure modes that insulation must be designed to resist.

In addition, the gases and liquids in tanks are being stored, not transiting through. When cold or hot liquid or gases are moving through a pipe, the damage caused by a weak point in the insulation is minimal, mainly impacting energy consumption from the system trying to maintain process temperature; however, it does not necessarily compromise the overall integrity of the process. However, a weakness or insulation gap on a tank means that the contents may fall out of acceptable temperature tolerances.

Tank surfaces can be immense, and in certain systems, such as those for oil and gas operations, are outside and exposed to the elements. Each surface — tank roofs, shell panels, and bases — face different failure modes when insulation underperforms, and a tank insulation specification that treats all three the same way is unlikely to serve any of them well.

Tank Roofs: Weather Resistance and Drainage

The roof of an industrial tank is a punishing location for insulation at any facility. Being fully exposed to weather, it carries the direct impact of rain, hail, UV radiation, and in cold climates, snow and ice loading. It must drain effectively to prevent standing water, and it must maintain its insulating properties despite repeated wet-dry cycling.

Conventional insulation materials applied to tank roofs — fibrous blankets, spray foam, or board insulation under metal jacketing — face a persistent challenge: keeping water out of the insulation system when the installation is horizontal and water has nowhere to go but in.

Metal jacketing on tank roofs requires carefully sealed seams and penetrations to prevent water entry, and those seals degrade over time through thermal cycling, UV exposure, and mechanical movement. When water gets beneath the jacketing, it sits on the insulation surface and eventually migrates into the insulation core. On a flat or low-slope roof surface, that water has no gravity assist to help it leave; instead, gravity keeps it where it is. Saturated insulation on a tank roof delivers a fraction of its rated R-value, adds significant weight, and creates a persistent wet interface with the tank shell that sets up corrosion conditions that are difficult and expensive to remediate.

Dragon Jacket’s fully encapsulated rigid panel system is inherently waterproof; it is not dependent on jacket seal integrity to exclude moisture and, consequently, performs differently in this environment. Water that contacts the insulation surface cannot penetrate the encapsulation, which means the insulation core remains dry and thermally effective regardless of rainfall, ponding, or condensation on the roof surface. The structural rigidity of the panels also means they maintain their thickness and coverage under snow or ice loading without compressing and losing R-value at the loaded points.

Tank Panels: Coverage, Durability, and Accessibility

The vertical shell panels of an industrial tank cover large surface areas that are exposed to a wide range of environmental and operational conditions depending on the facility. In outdoor installations, shell panels face UV, wind, temperature cycling, and precipitation. In process environments, they may be exposed to chemical splash, washdowns, or physical contact from equipment and personnel. In food and beverage or pharmaceutical facilities, they must withstand aggressive sanitation protocols without degrading.

Dragon Jacket’s prefabricated panel systems for tank shells offer consistent coverage across large surface areas without the seaming and transition complexity that conventional insulation systems accumulate at every joint and overlap. Panels are custom-designed to exact tank geometry, and connect with sealed, continuous joints to eliminate the moisture entry points that develop at seams in jacketed conventional systems. Rigid structural panels resist impact and abrasion from equipment and personnel contact without deforming or exposing the insulation core. The waterproof polyurea shell means insulation can be washed down without worry; water quickly beads and sheds off. And in applications where shell insulation must be removed for tank inspection or maintenance, prefabricated panels that can be removed and reinstalled without damage avoid the replacement cost cycle that conventional insulation creates at every inspection event.

For facilities with large tank populations — chemical storage, food and beverage processing, water and wastewater treatment, oil and gas storage — the cumulative advantage of panel systems that perform consistently across large surface areas, resist environmental degradation, shed water, and survive inspection access without needing replacement is substantial over the operational life of the assets.

Tank Bases: The Hardest Location to Get Right

Base insulation sits at the most demanding location: at the interface between the tank bottom and the ground or foundation, where moisture migration from below, compression under the full weight of the tank contents, and the near-impossibility of post-installation access combine to make material selection and installation quality critically important from day one. As demanding as tank roofs are, it is tank base insulation where specification errors are most costly and least recoverable. Once a tank is in service, its base is essentially inaccessible. The full weight of the tank and its contents bears down on the insulation continuously, moisture migrates upward from the ground or foundation, and any degradation of the insulation at the base goes undetected until it has been advancing for a considerable period.

Compressive failure is a primary risk when it comes to conventional insulation materials at tank bases. Fibrous materials compress under sustained load, losing thickness and R-value progressively over the operating life of the tank. Once compressed, they do not recover. The thin spots that develop under load create localized thermal bridges and, more seriously, create locations where the tank bottom contacts the insulation at reduced thickness, which changes the moisture and temperature conditions at the tank-insulation interface in ways that accelerate corrosion.

Dragon Jacket’s rigid closed-cell foam insulation is fully encapsulated in a structural polyurea shell to maintain its thickness under compressive load in a way that fibrous materials cannot. The structural integrity of the encapsulation material enables the base insulation to distribute the weight load across the panel surface more evenly rather than allowing point loading to compress the foam core at contact points. For tank base applications where insulation will be under continuous compressive load for the operational life of the asset, that structural stability is not a marginal improvement over conventional materials; it is a fundamentally different performance characteristic.

Moisture resistance at the base is equally important. Ground moisture and foundation condensation create a persistent upward moisture drive at the tank base that conventional insulation materials absorb over time. An impermeable encapsulated system that does not absorb moisture from below maintains its thermal and protective properties throughout the service life of the installation, rather than degrading progressively as moisture accumulates within the insulation core.

Dragon Jacket: A System Approach to Tank Insulation

Dragon Jacket Insulation has been engineered specifically to provide a solution for the common failure modes of most industrial insulation. Our system provides unique advantages in providing structural and thermal stability for almost every industrial application, including tank insulation.

One of the practical advantages of specifying a single insulation system that covers tank roofs, shell panels, and bases is the consistency it brings to installation, maintenance, and long-term performance expectations. When roof panels, shell panels, and base panels are components of the same engineered system, their transitions and connections work together.

Our system approach also simplifies the maintenance picture. Personnel familiar with one set of installation and reinstallation procedures can work across all three tank surfaces without needing to manage different materials, different fastening systems, or different performance expectations at different locations on the same asset.

Whether you are insulating a new tank installation, evaluating replacement options for a tank with underperforming insulation, or specifying a system for a facility with multiple tanks across different service conditions, Dragon Jacket Insulation can help you identify the right solution for your application. Contact us today to speak to an engineer, request a quote, or schedule a product demonstration.
