On large industrial projects, schedule compression is often the primary driver of cost overruns. EPC contractors must coordinate multiple trades, limited shutdown windows, and complex mechanical installations, and delays can quickly translate into budget problems.
One activity that frequently becomes a late-stage bottleneck is insulation installation. Typically, it occurs near the end of construction. When insulation falls on the critical path, it can delay mechanical completion, pressure testing, and commissioning.
Traditional industrial insulation is highly labor-intensive because systems are fabricated entirely in the field. This process requires insulation crews to:
- Measure piping on site after it has been installed
- Cut insulation materials
- Fabricate metal jacketing
- Apply adhesives or sealants
- Wait for curing before inspection
- Rework areas that do not pass inspection
For large systems with many fittings and valves, this process becomes extremely onerous and time-consuming.
As a result, prefabricated insulation systems manufactured by Dragon Jacket Insulation (DJI) are being increasingly used to remove insulation from the critical path. DJI systems can reduce installation time by up to 10x compared with conventional field-built insulation systems.
DJI replaces field fabrication with prefabricated insulation assemblies engineered using 3D modeling or system drawings. Each component is manufactured to match a specific pipe section, fitting, or valve.
Dragon Jacket insulation components consist of a rigid closed-cell core encapsulated within a durable polyurea shell. Each segment is a single component that can be clamshelled onto a specific fitting without cutting or trimming.
These advantages mean that insulation installation can be installed up to 10× faster than conventional insulation methods, depending on system complexity.
Conventional Insulation Slows Projects Down
Traditional insulation installation introduces several schedule risks:
- Reliance on specialized insulation contractors
- Weather delays for exterior installations
- Field fabrication errors and rework
- Damage to insulation before project completion
- Sequencing conflicts with other trades
For complex facilities with miles of piping, these issues can cause insulation to become a critical-path activity late in construction that can disrupt construction schedules.
The DJI Difference: Designed, Built, and Ready to Install
Another significant time advantage of Dragon Jacket insulation is that components are designed and manufactured before installation begins.
Using 3D modeling or piping schematics, insulation assemblies are fabricated to match the exact geometry of the system being insulated. This allows insulation manufacturing to occur in parallel with piping fabrication, rather than waiting for field measurements.
For EPC contractors, this parallel workflow can compress project schedules and reduce installation labor requirements.
Two-Step Installation
Once on site, Dragon Jacket Insulation offers another time advantage: it installs using a simple two-step process:
- Place the clamshell insulation around the pipe.

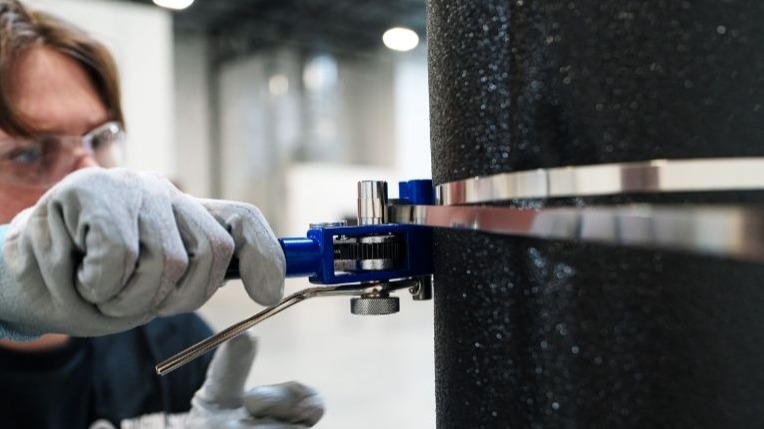

- Secure the section using stainless steel bands or other approved fasteners.
No cutting, wrapping, sealing, or curing is required. This also means that clean-up and waste are minimal. Further, because each component is pre-engineered, installation can often be completed in minutes per component instead of hours by regular construction crews, rather than specialized insulation subs.
Eliminating Rework and Inspection Delays
Insulation rework is also a common cause of schedule delays. Traditional insulation systems often require correction due to:
- Poor fit
- Damaged jacketing
- Improperly sealed seams
Prefabricated insulation reduces these risks because:
- Components are manufactured to precise dimensions
- Installation does not rely on field fabrication
- No seams means no sealing or taping
The clean, custom fit of DJI also allows inspectors to quickly verify installation quality to keep projects moving forward with minimal disruption.
Speed Without Sacrificing Performance
With Dragon Jacket Insulation, rapid installation does not require compromising on insulation performance. DJI provides:
- Moisture-resistant encapsulated insulation
- Stable long-term R-value
- Corrosion-under-insulation risk reduction
- Impact and UV resistance
- Service life exceeding 20 years
The insulation core provides approximately R-6.25 per inch and operates from −60°F to +350°F.
Moreover, the speed advantage of Dragon Jacket Insulation does not apply only at initial installation. DJI components are fully removable and reusable whenever piping requires inspection, repair, or reconfiguration. Sections can be removed during maintenance and reinstalled afterward without damaging the insulation system and with minimal downtime. For plant shutdowns and maintenance activities, DJI’s components allow:
- Faster access to valves and fittings
- No insulation rebuild after maintenance
- No need for insulation specialists
- No waste or mess
- Shorter downtime windows
Take Insulation Off the Critical Path
Prefabricated insulation systems transform insulation from a slow field-fabrication activity into a predictable installation step. By combining prefabrication, simplified installation, and reusable components, Dragon Jacket insulation can remove insulation from the critical path of mechanical construction schedules.
For EPC contractors, this approach reduces schedule risk and helps projects reach commissioning faster and more cost-effectively. Contact Dragon Jacket Insulation today to request specifications, evaluate prefabricated insulation systems, or discuss how DJI can help accelerate installation on your next project.
